Casio XJ-V110W

Description

Display Resolution: WXGA (1280 x 800)

Specifications

DISPLAY

• Display Technology: 0.65" DLP® chip (WXGA)

ILLUMINATION TECHNOLOGY

• Type: Laser and LED Hybrid Technology
• Service life: up to 20,000 hours
• Brightness: 3,500 lm


• Colour depth: up to 1.07 billion (full colour)

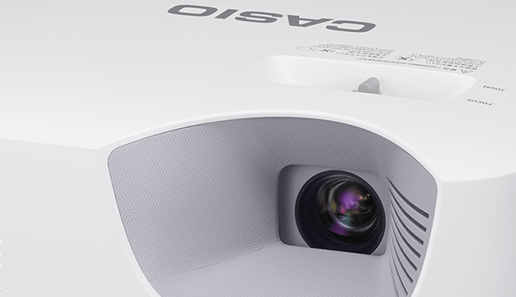

PROJECTION LENS

• Technology: 1.5x optical zoom
• Projection ratio (viewing distance:width): 1.32–1.93:1
• Offset: 33 %
• Min. distance: 0.83 m
• Focus: Manual

PROJECTION

• Viewing distance 60" screen: 1.64 m to 2.42 m
• Viewing distance 100" screen: 2.81 m to 4.11 m

KEYSTONE CORRECTION

• Vertical (automatic/manual): + 30°/ ± 30°

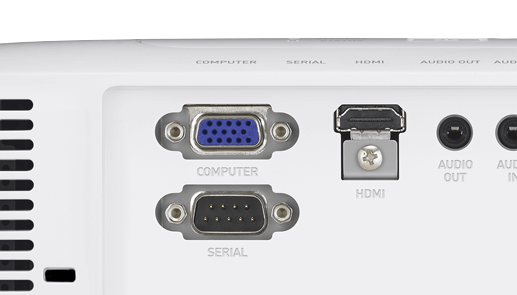

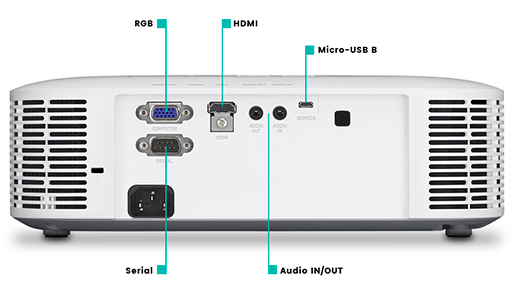

INTERFACES

• Computer: 1x 15 pin D-Sub (VGA)
• Digital input: 1x HDMI port
• Audio: Input terminal: 1x 3.5 mm stereo mini jack

  Output terminal: 1x 3.5 mm stereo mini jack (variable audio input

• Control inputs: RS-232C
• USB: Micro USB type B: firmware update

EXTENDED FUNCTIONS

• Direct power on, direct power off, rear projection, freeze, blank screen, ceiling mounting (4x M4), digital zoom (2x), presentation timer, password protection feature

OPERATING NOISE

• Light Control On (1–7): 29–35 dB
• Light Control Off (Normal/Bright): 36.5 dB/39 dB

ENERGY CONSUMPTION

• Light Control On (Light Output 1–7): 80–155 W
• Light Control Off (Normal/Bright): 165 W/190 W
• Standby: 0.23 W

COMPUTER COMPATIBILITY

• Max. resolution (compressed): Computer: 1,920 x 1,200 pixels (WUXGA), Digital input: 1,920 x 1,080 pixels (Full HD 1080p)

INCLUDED WITH PRODUCT

• Batteries, mains cable, IR remote controls (YT-150), warranty card

Dimensions and Weight

• Dimensions (W x H x D): 299 x 97 x 299 mm
• Weight: 3.5 kg
• Casing/colour: White
• Operating temperature: 5–35°C
